Deferred timing resolution using stretch
The OpenQASM 3 language specification contains a stretch
type with which you can specify relative timing of operations instead of absolute timing. Support for stretch
as durations for Delay
instructions was added in Qiskit v2.0.0. The concrete value of a stretch duration is resolved at compile time, after the exact duration of calibrated gates are known. The compiler tries to minimize the stretch duration, subject to timing constraints on one or more qubits. You can then express gate designs such as evenly spacing gates (for example, to implement a higher-order echo decoupling sequence), left-aligning a sequence of gates, or applying a gate for the duration of some sub-circuit, without knowing the exact timing.
Examples
Dynamical decoupling
A common use case of stretch
is to apply dynamical decoupling to an idling qubit while another qubit is undergoing conditional operations.
For example, we can use stretch
to apply an XX dynamical decoupling sequence to qubit 1, for the duration of the conditional block applied to qubit 0, as illustrated by the following diagram:

The corresponding circuit would look like the following. Note that a pair of barriers is needed to define the boundaries of this relative timing.
from qiskit.circuit import QuantumCircuit, QuantumRegister, ClassicalRegister
qubits = QuantumRegister(2)
clbits = ClassicalRegister(2)
circuit = QuantumCircuit(qubits, clbits)
(q0, q1) = qubits
(c0, c1) = clbits
# Add barriers to define the boundaries
circuit.barrier()
circuit.h(q0)
circuit.measure(q0, c0)
with circuit.if_test((c0, 1)) as else_:
circuit.h(q0)
with else_:
circuit.x(q0)
# Apply an XX DD sequence with stretch on qubit 1
s = circuit.add_stretch("s")
circuit.delay(s, q1)
circuit.x(q1)
circuit.delay(expr.mul(s, 2), q1)
circuit.x(q1)
circuit.delay(s, q1)
circuit.barrier()
Scheduling alignment
This example uses stretch
to ensure a sequence of gates between two barriers are left-aligned, whatever their actual durations are:
from qiskit import QuantumCircuit
from numpy import pi
qc = QuantumCircuit(5)
qc.barrier()
qc.cx(0, 1)
qc.u(pi/4, 0, pi/2, 2)
qc.cx(3, 4)
a = qc.add_stretch("a")
b = qc.add_stretch("b")
c = qc.add_stretch("c")
# Use the stretches as Delay duration.
qc.delay(a, [0, 1])
qc.delay(b, 2)
qc.delay(c, [3, 4])
qc.barrier()
When using stretch
with Qiskit Runtime, any remainder resulting from a stretch resolution is added to the first delay that uses the stretch.
Example:
a = circuit.add_stretch("a")
circuit.barrier(q0, q1)
circuit.delay(100, q0)
circuit.delay(a, q1) # resolve to 26
circuit.x(q1) # duration: 8
circuit.delay(a, q1) # resolve to 25
circuit.x(q1) # duration: 8
circuit.delay(a, q1) # resolve to 25
circuit.x(q1) # duration: 8
circuit.barrier(q0, q1)
The above code resolves to a value of 25 with a remainder of 1. The first delay[a]
will have the remainder added.
Stretch resolution equation:
Qiskit Runtime limitations
Support for stretch
in Qiskit Runtime is currently experimental and has the following constraints:
-
At most one stretch variable per qubit set between barriers (implicit and explicit). A qubit set is one or more qubits; these sets must be mutually exclusive.
a = circuit.add_stretch("a") b = circuit.add_stretch("b") circuit.delay(a, (q0, q1)) circuit.delay(b, q0) # Invalid because 2 stretches are applied on q0
a = circuit.add_stretch("a") b = circuit.add_stretch("b") circuit.delay(a, (q0, q1)) circuit.delay(b, q2)
-
The area surrounded by a set of barriers is called a barrier region. A stretch variable cannot be used in multiple barrier regions.
# Stretch a is used in two barrier regions a = circuit.add_stretch("a") circuit.barrier((q0, q1)) circuit.delay(a, q0) circuit.barrier((q0, q1)) circuit.delay(a, q0) circuit.barrier((q0, q1))

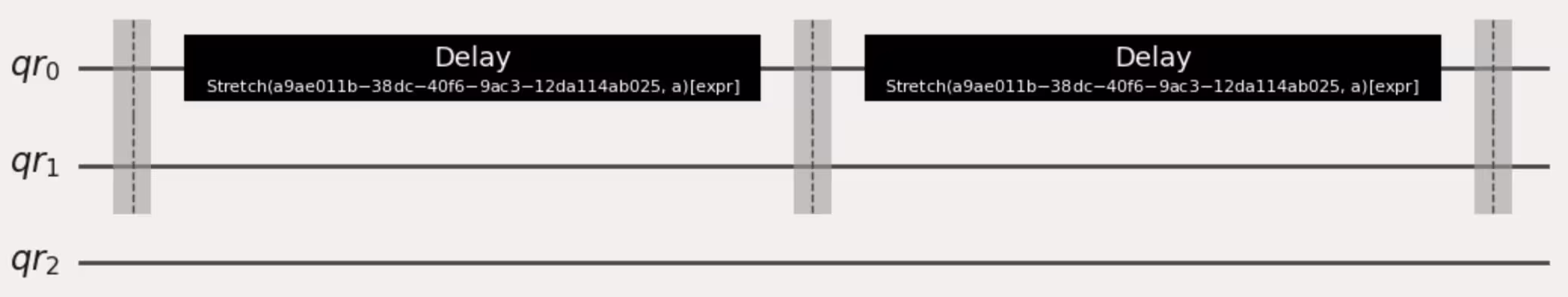

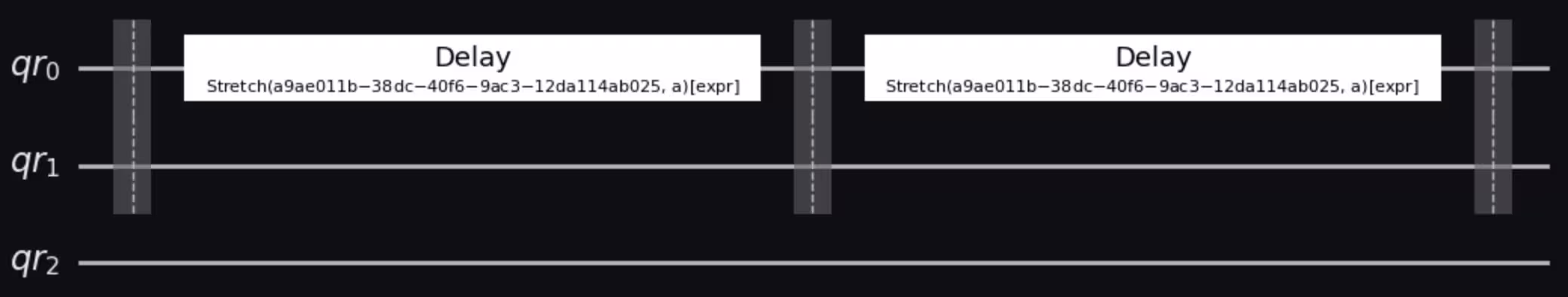

Invalid use of stretch in barrier regions # Stretch a is used inside a barrier region that is on q0 and q1 a = circuit.add_stretch("a") circuit.barrier((q0, q1)) circuit.delay(a, q0) circuit.barrier(q2) circuit.delay(a, q0) circuit.barrier((q0, q1))

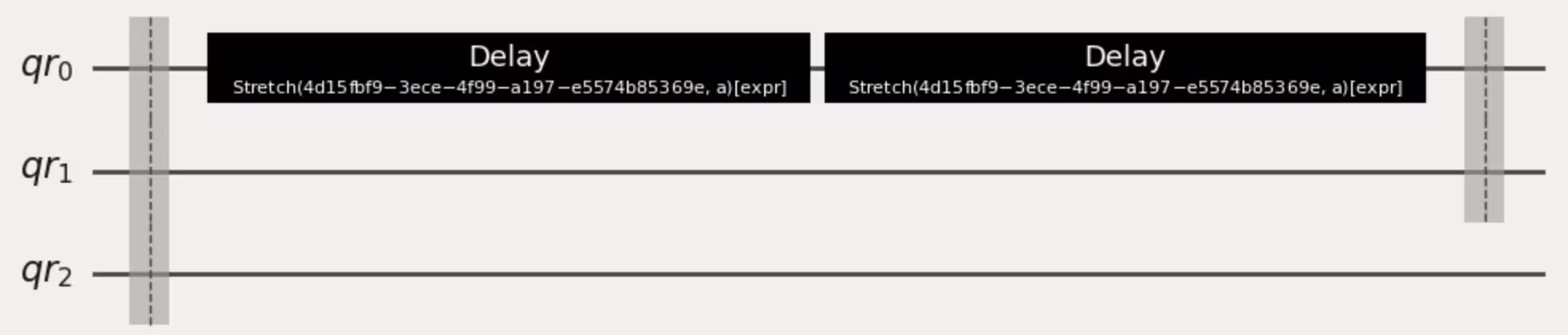

Valid use of stretch in a barrier region -
Stretch expressions are limited to those of the form
X*stretch + Y
whereX
andY
are floating point or integer constants.a = circuit.add_stretch("a") b = circuit.add_stretch("b") c = circuit.add_stretch("c") # (a / b) * c is not supported circuit.delay(expr.mul(expr.div(a, b), c), q1)
from qiskit.circuit import Duration a = circuit.add_stretch("a") circuit.delay(expr.add(expr.mul(a, 2), Duration.dt(3)), 0)
-
Stretch expressions can only include a single stretch variable.
a = circuit.add_stretch("a") b = circuit.add_stretch("b") circuit.delay(expr.add(a, b), 0)
a = circuit.add_stretch("a") circuit.delay(expr.add(a, a), 0)
-
Stretch expressions cannot resolve to negative delay values. The current solver doesn't infer non-negativity constraints.
from qiskit.circuit import Duration circuit.barrier((q0, q1)) circuit.delay(20, q1) # The length of this barrier region is 20dt, meaning the # equation for solving stretch 'a' is a + 40dt = 20dt, giving a = -20dt. circuit.delay(expr.add(a, Duration.dt(40)), q0) circuit.barrier((q0, q1))
circuit.barrier((q0, q1)) circuit.delay(20, q1) circuit.delay(a, q0) circuit.barrier((q0, q1))
